JH Alcohol Recovery Distiller

  • Search keywords: JH Alcohol Recovery Distiller
  • Product Name: JH Alcohol Recovery Distiller
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Alcohol Recovery Distiller
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
Product Details: JH Alcohol Recovery Distiller

1). SUS316L or SUS304
2). accordance GMP standard
3). 10yeas experience
4). difference volume for choose

High recovery rater, purity of 99%
Energy-saving and reasonable price

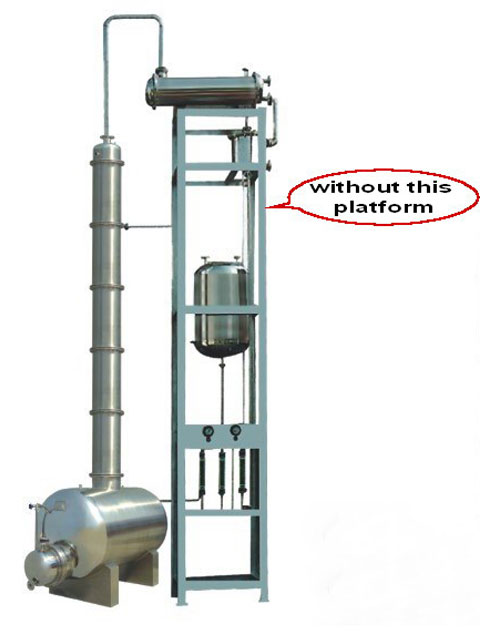

Alcohol Recovery Distiller


1.Usage
The device is applicable to alcohol recovery in filed such as pharmaceutical, food, light industry and chemical industry and so reduces the production cost and improves the economic benefit.

2.Component
The device uses high efficiency stainless steel corrugated packing, all the parts contact with alcohol such as tower body, condenser, regulator tank, and cooling snake tube are made of stainless steel, to ensure that the finished alcohol products are not contaminate.

3.Advantage
1) The tower reactor adopts removable U-tube, this makes it easy to heat outer wall and clean inner wall of the distillation kettle.
2) This device can distill alcohol from 30-50 degrees to 95-99 degrees.
3) The finished products demand high alcohol degree, can increase the reflux ratio. But the corresponding finished product is low, residual liquid containing alcohol degrees emissions: ≤3 degrees, it is the professional equipment in recycling alcohol



Technology parmeter



JH-200A

JH-300A

JH-400A

JH-500A

JH-600A

JH-800A

Tower volume (L)

640

1220

1450

2300

2505

3200

Tower heigh(mm)

6000

7000

7000

7000

7500

7500

Volume of high postion tank (L)

300

400

650

800

1000

1500

Condensator area (m2)

5

8

11

18

25

45

Cooling area (m2)

1

1.5

2.2

4

6

8

Heat area (m2)

3.0

6.0

6.5

10

15

26

Recycling capacity(kg/h)

60~80

90~100

120~160

200~300

350~440

550~620

Recycling concentration(%)

95~99

Packing form

Stainless steel corrugated loading material

Size

Length×width×heigh

2300×700×7300

2600×800×7500

2500×1000×9000

3000×1200×9000

3500×1400×1000

4200×1800×1000



Alcohol distiller,alcohol recoevery tower, alcohol concentrator, alcohol concentrator,ethanol distiller
