plate heat exchanger

You are here : Home » Products » Heat Exchanger
  • Search keywords: plate heat exchanger
  • Product Name: plate heat exchanger
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Heat Exchanger
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
plate-heat-exchanger.pdf
Product Details: plate heat exchanger

Application

We supply plate heat exchanger to heat or cool raw materials and products. The medium may be steam, tower water or hot water. It can be used in juice, dairy, beverage and other processing.The ideal device for heat exchange of liquid-liquid and liquid-steam.

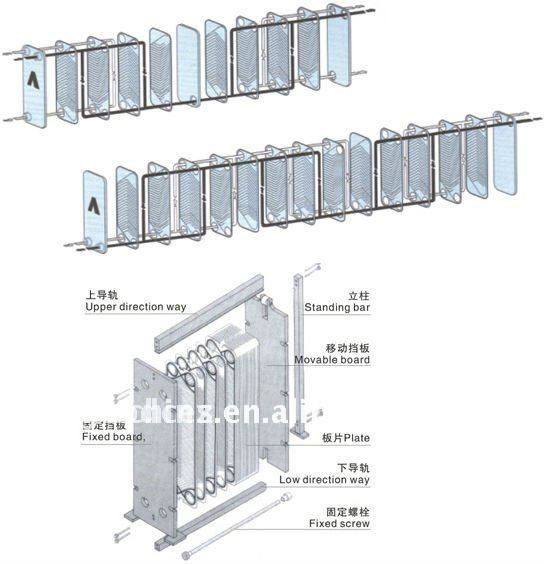

Composition

Each plate is provided with a gasket, which seals the flow gaps to atmosphere and the media from one another. The

plate package is mounted in a rack consisting of a fixed number of plates. Two pressure plates clamp this package

together with tie rods.  Pure counter flow is employed to achieve maximum possible heat transfer.



Technology parameter

Model specification

BR0.05-3

BR0.1-4

BR0.25-5

Heat exchanging area of single plate(m²)

0.05

0.1

0.2

Cooling capacity (L/h)

700

1500

2500

Steam pressure (MPa)

0.4-2

Using temperature (°C)

120-160

Angle hole diameter (mm)

38

60

75

Take over diameter (mm)

28

38

46

Heat exchanging pieces of single machine

60

40

25

Heat exchanging area of single machine (m²)

3

4

5



Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.

It helps you get more informations you need to trade confidently with suppliers.
