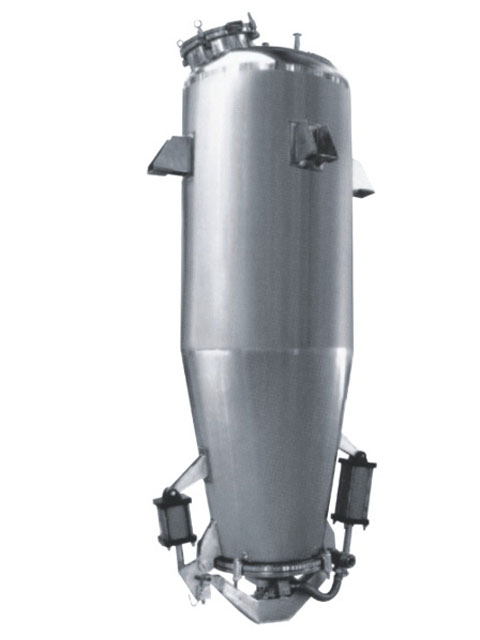

Stainless Steel Seeping vessel

You are here : Home » Products » Pharmacy Equipment
  • Search keywords: Stainless Steel Seeping vessel
  • Product Name: Stainless Steel Seeping vessel
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Pharmacy Equipment
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
Product Details: Stainless Steel Seeping vessel

1.Usage

The equipment is applicable for the filtration operation for traditional Chinese medicine, food and chemical industry etc.



2.Working principle

1) The filtration method is to add leaching solvent continuously into the rough powder of medicine material to make it filtrate the medicine powder, and then the leaching liquid will flow from the bottom outlet.



2) During the filtrate, the solvent will filter into medicine material to dissolve large amount of soluble matter and the concentration will increase, it will move downward after the density increase.



3) The leaching solvent at the upper layer or the thin leaching liquid will change the position and produce, which will make a good concentration difference to make the scattering be carried out smoothly.



 4) Thus, the leaching effect is better than the dipping method, and the extraction will be comparatively complete.





3.Structure and charcter

The equipment is composed of tank body, taper type, oval seal head (or flat cover), pneumatic slagging door and operation bench etc. It has such characteristics as equal solvent distribution and convenient slagging etc.



4.Technology parameter

Model and specification

SLG0.5

SLG1

SLG2

SLG3

All capacity (L)

600

1200

2300

3200

Design pressure inside tank (Mpa)

    Normal pressure

Raw material input door

diameter (mm)

300

400

400

400

Dregs outlet door diameter (mm)

400

600

800

800







Would you like to get more products information or order it, please call me, or click Inquiry Now to fill in the Form.
