JC Alcohol Deposition Tank

  • Search keywords: JC Alcohol Deposition Tank
  • Product Name: JC Alcohol Deposition Tank
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Alcohol Recovery Distiller
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
JC-Alcohol-Deposition-Tank.pdf
Prev Product: FJ Reactor Equipment
Next Product: JF Milk Cans
Product Details: JC Alcohol Deposition Tank
1).SUS316L or SUS304
2).accordance GMP standard
3).10yeas experience
4).difference volume for choose

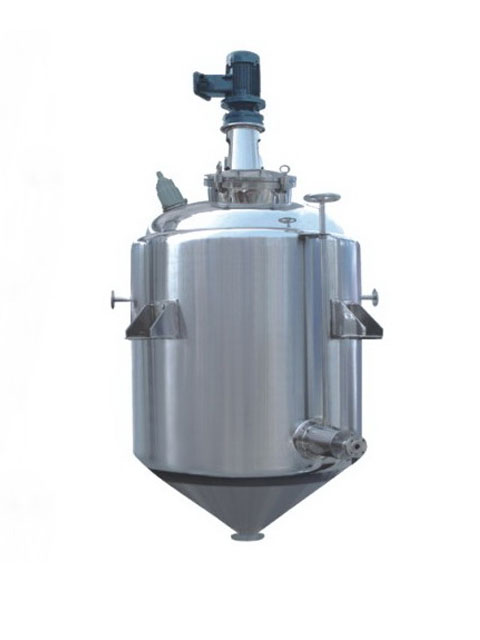

Alcohol Deposition Tank



JC series alcohol deposition tank (Sedimentation tank) is suit for alcohol deposition in such  industrials as China traditional drug, oral liquid, foodstuff , health product, chemistry. The alcohol deposition tank is a special device for alcohol deposition, also titled  solvent change or  alcohol bar. It is mainly used to freeze the solution from concentration of water-decocted China traditional drug or make alcohol deposition under normal temperature, also to execute the water deposition of the concentrated liquid after the alcohol desposition of China traditional drug.

The device includes the ellipse seal head with clip sleeve, taped-shaped base of cylinder, inner-installed three-shaped millr and special finely-regulated revolve-out liquid pipe, etc. The mode for water-decocting and concentration of China traditional drug as follow: First fill the alcohol to fprm mixture, secondiy under low temperature freeze to make deposition to separate the soild from liquid to improve the purity and clearness of the extraction liquid of China tradition drug. The device is made with stainless steel of SUS304. The high pressure automatic spray & cleaning system is available to fill the low temperature of cooling water through the clip sleeve. The mechanical seal in the transmission part and the explosion-proof motor can ensure the security of the production process, meeting with GMP standard. The surface is treated with polish or surface polishing.





Technology parmeter



JC-300

JC-500

JC-1000

JC-1500

JC-2000

JC-3000

JC-6000

Volume(L)

300

500

1000

1500

2000

3000

6000

Heat area(m2)

1.8

3.0

4.5

5.4

6.2

8.1

12

Work temperature()

-15~25

heat transferring medium work pressure(Mpa)

0.25

Work pressure(Mpa)

0.09

Stir power(Kw)

0.75

0.75

1.5

1.5

2.2

3

4

Stir speed (r/min)

132

coefficient of heat conductivity(K)

150~200



Alcohol Deposition Tank,alcohol tank, ethanol tank
