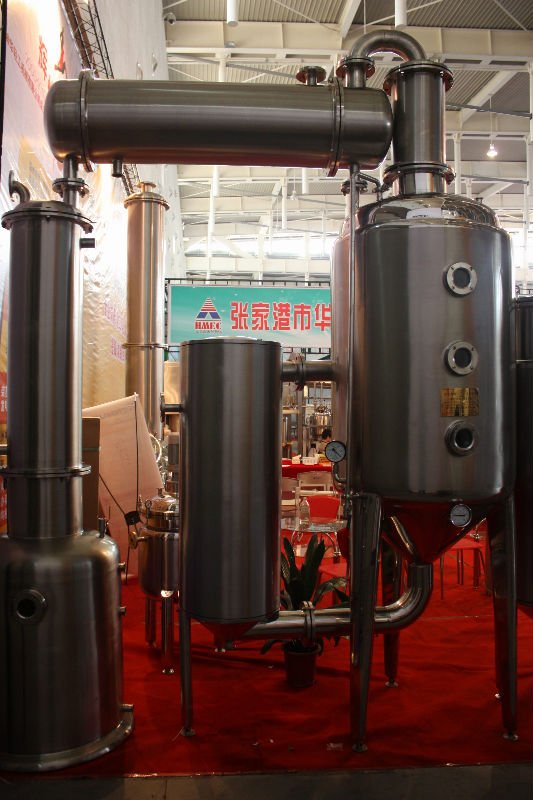

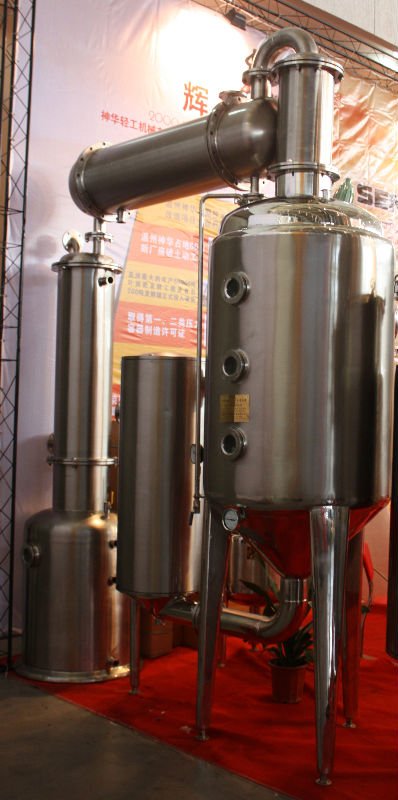

WZ Alcohol Concentrator

  • Search keywords: WZ Alcohol Concentrator
  • Product Name: WZ Alcohol Concentrator
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Alcohol Recovery Distiller
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
WZ-Alcohol-Concentrator.pdf
Product Details: WZ Alcohol Concentrator

1).SUS316L or SUS304
2).accordance GMP standard
3).10yeas experience
4). can distiller alcohol, and other material



High recovery rater.

Energy-saving and reasonable price

Single-effect concentrator device is to concentrate the material in the occasions such as China traditional drug, west drug, dextrose, amylum sugar, oral liquid, chemistry, foodstuff, monosodium glutamate and milk product and to reclaim the industrial organic solvent such as alcohol. It is suitable to concentrate the thermal sensitive material under lower temperature and vacuum with little batch number and multiple varieties



Features:

1.Alcohol recycling: Strong recycling capacity and the vacuum concentration procedure, make the production rate improved 5-10 times than the old types, and reduced 30% of energy cost. It has the character that little investment but high reclamation profit.

2.Concentrating materials: The equipment adopts the style that combining externall heating cycling and vacuum negative pressure evaporation. Evaporation speed is swift, and the concentration proportion can reach to 1.3.The liquid materials are concentrated under he completely sealing condition and there is no foaming. The liquid concentrated by this equipment has the features that no pollution and strong flavor. And it is easy to clean (cleaning can be done as soon as opening the upper and lower covers ). The machine is easy to operate, covers small areas, the heater and vaporizer adopt the stainless steel heat keeping structure, the shell is made of stainless steel and the surface is mirror or matted process.



Technology parmeter



WZ--500

WZ--1000

WZ--1500

WZ--2000

evaporation rate(kg/h)

500

1000

1500

2000

vapor pressureMp

0.009

vacuum degreeMp

-0.08

concentration proportion

12~13

outside measurement

2000×1000×3000

2200×1200×3300

2500×1300×3500

4600×2350×5100

category of vessel

normal atmosphere





alcohol distiller,alcohol recovery distiller,alcohol reclamation concentrator,ethanol dsitiller
