ZN Vacuum Juice Evaporator

You are here : Home » Products » Pharmacy Equipment »
  • Search keywords: ZN Vacuum Juice Evaporator
  • Product Name: ZN Vacuum Juice Evaporator
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Pharmacy Equipment
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
ZN-Vacuum-Evaporator.pdf
Prev Product: RH Heat Reflux Extractor
Next Product: TQ-Extraction tank
Product Details: ZN Vacuum Juice Evaporator
1).SUS316L or SUS304
2).accordance GMP standard
3).10yeas experience
4).difference volume for choose
evaporator

Use:

The inspissation that this equipments--Vacuum Pressure Reduction evaporator  primarily be applicable to the system the medicine, food, health care, oral liquid, juice ,chemical engineering etc. The device can used for concentrating industry liquid, and can also used for the recovery alcohol.

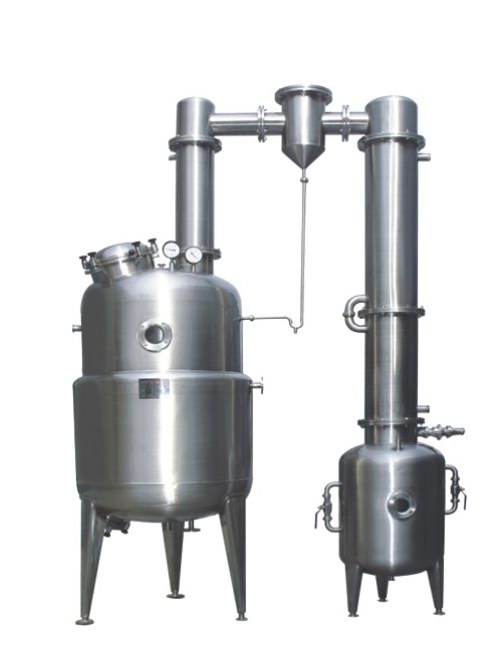

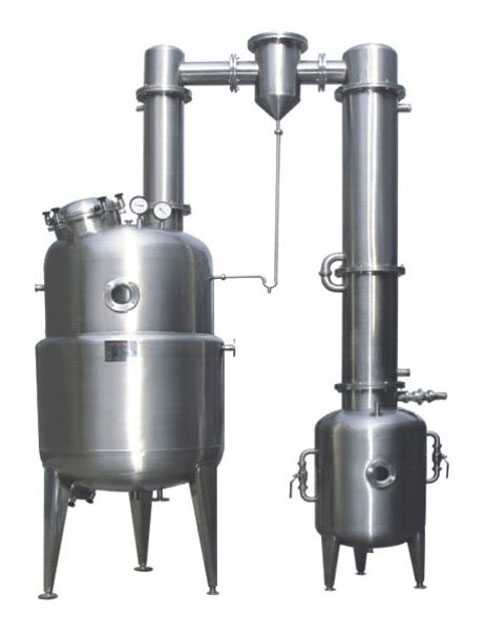

Construction characteristics:

This equipments totally contain beautiful material manufacturing of all adoption stainless steels of five specification parts concentration tank, condensator, gas-liquid separator, cooler and liquid receiving barrel. Concentration tank is of cilp sleeve structure. The condensator is of line pipe typr and the cooler is of tray pipe type, which can descend the adoption to mix blend to mix with such as the higher circumstance of concentrated degree or the development withdraw, and its result is better.



Work principle:

The material can adopt the into the inside of concentrated bottle. The exploitation clips a steam to proceed to heat, add high degree then attain to treat center as proper, the ascension's stanza steam be controled by congealed machine of the first control the reflux measure, according to the different material bottle the foam for inside temperature clipping taking and part of and high boiling point liquid separate machine to separate to return the inside of concentrated bottle from the spirit liquid, for the industry melting agent( alcohol) through the second congealed with the water cooler finally at suffer the liquid slot the acquisition. This equipments is eaches to often press the decompression production, can intermittent bottle or continuously produce, be continuously produce into its take care of to should add the flowmeter into, in the continuous decompression production line right concentrated bottle outs the want to make first a bottle inside instauration often press the rear can out.





Technology parmeter



ZN-50

ZN-100

ZN-200

ZN-300

ZN-500

ZN-700

ZN-1000

ZN-2000

amount of evaporationkg/h

25

60

130

160

230

330

450

900

Steam pressure(Mp)

<0.25

Heat area(m2)

0.4

1.2

1.3

1.5

1.75

2.2

2.5

5.5

Cooling area(m2)

0.25

1

1

1

1.1

1.1

1.2

3

Condensator area (m2)

1.2

3.3

4.0

5.0

7

7

7.5

14

liquid trough volume(L)

15

45

60

80

100

125

140

185

energy consumption(kg/h)

230

460

700

850

1150

1500

1850

4030

Vacuum degree(Mpa)

-0.08

Size

Length×width×heigh(mm)

1200×600×3200

1350×750×2200

1700×800×2700

1900×1000×3000

2100×1200×3400

2400×1300×3400

2390×1300×3720

2730×1500×4700



evaporator
