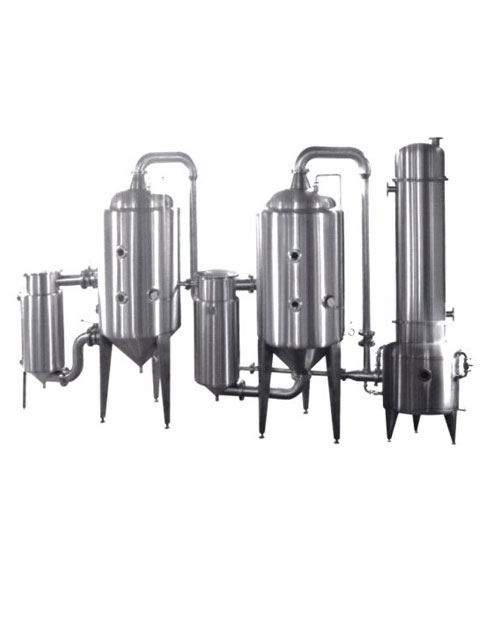

Dual-effect energy-saving concentrator-Distiller

You are here : Home » Products » Food Equipments
  • Search keywords: Dual-effect energy-saving concentrator-Distiller
  • Product Name: Dual-effect energy-saving concentrator-Distiller
  • Application: Liquid
  • Material: SUS316L/304
  • Type: Food Equipments
  • Minimum Order Quantity: 1 Set
  • Port: ningbo
  • Packing Details: Cotton cloth/wooden box
  • Delivery Time: 30days
  • Payment Terms: T/T
  • Supply Ability: 100 Set/Sets per Month
Dual-effect-energy-saving-concentrator-Distiller.pdf
Product Details: Dual-effect energy-saving concentrator-Distiller
1).SS 316Lor304
2).accordance GMP standard
3)10yeas experience
4).difference volume for choose
distiller

Main Advantage:

It is energy saving concentrator ,the characteristic of this dual effect is the steam can be twice use . take 1000L dual

effect concentrator for example,it can save 3,500 tons of steam, 90,000 tons of water, 80,000 watt of electric per year, it is about save $14,000-$22,000 per year



Product Description

Dual-effect energy-saving evaporator is used in Chinese traditional medicine, western medicine, glucose, starch, MSG, dairy products and chemist to concentrate their liquid, especially suitable for termally sensitive materials to concentrate.



Characteristics:

Combining the advantages of domastic homogeneous products and suggestion, our company improved the design aboratively, and the effectiveness is much better.

1. Energy-saving profit:In case of SJN-1000, the saves respectively in the term of vapor, warer and electric per year are about 3500 tons,9000 tons and 8000watt, equal to RMB 100,000~150,000 Yuan.

2. Adopts the form of making output heat circulation system and vacuum negative evaporation combining together to fasten the speed. Concentrating gravity can reach 1. 25~1.35( in case of normal China traditional immerse cream) without need of open-mouth pan for collection of cream.

3. The liquid is concentrated in sealing and without foam condition. The materials flowed out have no pollution, the taste of the medicine is very heavy, the cream is made evenly.

4. The heater and the top cover of evaporator adopt turnover arm structure opening the caver of the Heater, they can be cleaned. It is very convenient and save time and labor.

5. With the adoption of double-efficient simultaneouse evaporation the twice steam can be used aboundently and the energy can be reduced. Compared with single-efficient, the energy can be reduced 50%, at the same time the organic solvent can be recycled.

6. The parts contacts with materials is made of made of stainless steel SUS304 and reaches GMP standard. This equipments can automatically drain, alleviate to labor the strength, and have the half automation the function.





Technology parmeter

Parameters

SJN-500

SJN-1000

SJN-1500

SJN-2000

amount of evaporationkg/h

500

1000

1500

2000

water consumption of circulation  (T/h)

6

12

15

18

steam consumption (kg/h)

250

500

750

1000

Size length*height*width  ( m)

4×1.5×3.3

5×1.6×3.5

6×1.6×3.7

6.5×1.7×4.3

concentration ratio

1.2-1.4

vaporization temperature () Single effect

80~90

vaporization temperature () Dual-effect

55~70

degree of vacuum

(Mp) Single effect

-0.06

degree of vacuum

(Mp) Dual-effect

-0.08

Steam pressure  Mpa

0.09



distiller
